SD
Remove the battery.

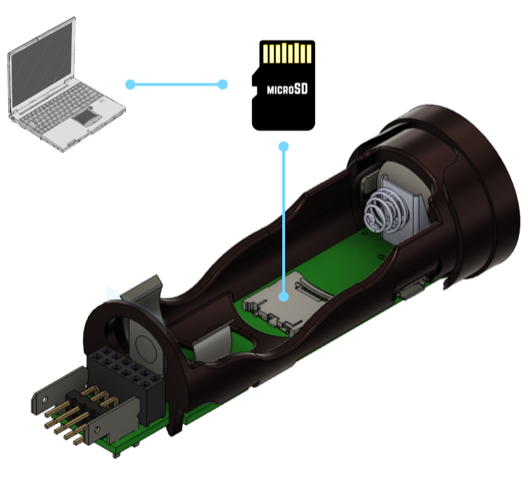

Slide the card holder's door towards the speaker until you hear a click.
Remove the micro SD card and connect it to this computer.
Press the "Connect" button and allow access to the SD card's
_osx_
folder.
Changes will be saved on the SD card and applied when you reconnect it to the board.
Connect via SD Card
USB

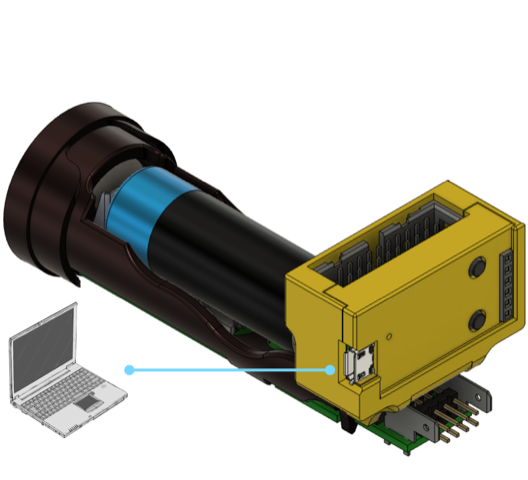

Connect devPort or a compatible USB-UART converter to the extension connector. See
SaberProp wiring diagram
for details.
Connect the devPort to this computer using a micro USB cable.
Insert the battery and wait for the boot sound.
Press the "Connect" button and allow access to he USB port. No driver installation is required.
Changes will be saved on SaberProp's storage memory and applied at the next reset.
Connect via USB
Loading...
Loading...
Cancel
SaberProp Web App
Connect
Disconnect
Reset
Reset Connection Mode
No board connected
CLASH
BLAST
STAB
FORCE
LOCKUP
DRAG
LIGHT
MELT
User Profile:
Current Preset:
Color Variation:
0
Volume:
Combat:
40000
Stealth:
10000
Brightness:
Combat:
55000
Stealth:
3300
Motion Sensitivities:
▶
Master Sensitivity:
127
Swing:
125
Clash:
126
Stab:
127
Shake:
128
Tap:
129
Twist:
130
Menu:
131
Active presets:
Add active preset
Restore Analog Defaults
Restore Pixel Defaults
Sound Fonts:
Please connect to board for writing fonts.
Default:
Write Default Font
Restore factory font:
Restore Font
Add extra font:
Choose files
Presets library
Install Config
Advanced
Save
Presets library
+ Add Preset
Install configuration:
Save
Blades library
Blades library
+ Add Analog Blade
+ Add Pixel Blade
Advanced:
Hide/Show Advanced Options
Load XML:
Auto-add-CRC32
Convert
Download
Clear
Refresh interface from board
Testing GetDirFiles
Testing HotFixFolder
Test download&write from URL
Format
Load Install XML in interface:
Load Presets XML in interface:
Save XML
Generate XML
Convert to BIN
Load XML (text only):
Download BIN
Download XML
Clear
Auto-add-CRC32
Write Install To Board
Update LEDlib (to board)
Update LEDlib (interface)
Reset LEDlib
Write Default Font
Delete Default Font
Test Loading popup
Input XML
(can be edited)
COD Output
(HEX, view-only, actual binary available on clicking download)
INSTALL XML
to be converted(can be edited, click convert to get updated binary output)
<?xml version="1.0" encoding="UTF-8"?> <CODsource> <FileID BinOrder="1" Format="string" len="8" value="cod_v02"/> <!-- Do not change --> <NrOfEntries BinOrder="2" Format="uint8" value="7"/> <!-- Entry = table or struct --> <Install BinOrder="3" Format="uint8"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="1" /> <!-- Install entry with smallest ID in file will be automatically installed --> <StructHandler BinOrder="3" Format="uint16" value="11" /> <!-- HANDLER_xInstall --> <StructSize BinOrder="4" Format="uint16" value="24"/> <!-- 24 BYTES in subsequent fields --> <nButtons BinOrder="5" Format="uint8" value="1"/> <!-- 1 button --> <nBlades BinOrder="6" Format="uint8" value="2"/> <!-- 2 blades --> <bladeID BinOrder="7" Format="uint16" val01="2" val02="3" val03="0" val04="0" val05="0" val06="0"/> <!-- Main pixel blade and crossguard with RGBW Analog LEDs --> <maxVolume BinOrder="8" Format="float" value="1.0"/> <!-- factory default volume --> <devStream BinOrder="9" Format="uint8" value="1"/> <!-- enable developer messages --> <speak BinOrder="10" Format="uint8" value="0"/> <!-- disable voice messages --> <charge BinOrder="11" Format="uint8" value="1"/> <!-- enable battery charger --> <display BinOrder="12" Format="uint8" value="0"/> <!-- disable display --> <bluetooth BinOrder="13" Format="uint8" value="0"/> <!-- disable bluetooth --> <ir BinOrder="14" Format="uint8" value="0"/> <!-- disable IR --> </Install> <AnalogBlade BinOrder="4" Format="uint8"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="2" /> <!-- Normally a local ID (<1000) --> <StructHandler BinOrder="3" Format="uint16" value="10" /> <!-- HANDLER_xBladeInstaller --> <StructSize BinOrder="4" Format="uint16" value="27"/> <!-- 27 BYTES in subsequent fields --> <bladeType BinOrder="5" Format="char" value="a"/> <!-- Analog Blade --> <nLEDs BinOrder="6" Format="uint16" value = "1"/> <!-- Single-LED blade --> <ledIDs BinOrder="7" Format="uint16" val01="4001" val02="0" val03="0" val04="0"/> <!-- codid_X4CreeRGBW_RGB, codid_X4CreeRGBW_Wsat --> <pins BinOrder="8" Format="uint8"> <led1 BinOrder="1" Format="uint8" val01="1" val02="2" val03="3" val04="4"/> <!-- RGB on pins LED1, LED2, LED3. W on pin LED4 --> <led2 BinOrder="2" Format="uint8" val01="0" val02="0" val03="0" val04="0"/> <led3 BinOrder="3" Format="uint8" val01="0" val02="0" val03="0" val04="0"/> <led4 BinOrder="4" Format="uint8" val01="0" val02="0" val03="0" val04="0"/> </pins> </AnalogBlade> <PixelBlade BinOrder="5" Format="uint8"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="3" /> <!-- Normally a local ID (<1000) --> <StructHandler BinOrder="3" Format="uint16" value="10" /> <!-- HANDLER_xBladeInstaller --> <StructSize BinOrder="4" Format="uint16" value="27"/> <!-- 27 BYTES in subsequent fields --> <bladeType BinOrder="5" Format="char" value="p"/> <!-- Pixel Blade --> <driverID BinOrder="6" Format="uint16" value = "4001"/> <!-- RSX127 --> <pin BinOrder="7" Format="uint8" value="1"/> <!-- DAT1 pin--> <notused BinOrder="8" Format="string" len="19" value=""/> <!-- zero padding--> </PixelBlade> </CODsource>
INSTALL Output
(HEX, view-only, actual binary available on clicking download)
LEDlib
(can be edited, click Update LEDlib after editing, ! will clean install from above and set to default)
<!-- ledlib_PLZ, filever. 1.0 --> <ProffieLite_LED_Library> <!--============= | HEADER | =============--> <FileID BinOrder="1" Format="string" len="8" value="cod_v02"/> <!-- Do not change --> <NrOfEntries BinOrder="2" Format="uint8" value="142"/> <!-- Total number of entries (table or struct) in this file --> <!--=================================== | pPWL LED DRIVERS [1000, 1999] | ===================================--> <!-- [1000, 1099] X4 EMITTERS --> <!-- ======================== --> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1002. Series resistance = 0.680000 [ohm]. Full scale brightness = 3700. Emitter: XPEBRD-L1-0000-00901, Lens: Carlco 10622, Mount: X4C, CIE1931: x=0.697900, y=0.300100 Photometric test setup: diffused, blade-in-box, constant 30 deg.C --> <X4em_XPE2-RD BinOrder="3"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1002" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="13037" val1="11234" val2="9855" val3="8796" val4="7971" val5="7243" val6="6734" /> <Row1 BinOrder="2" Format="uint16" val0="26146" val1="22801" val2="20130" val3="18134" val4="16583" val5="15187" val6="14358" /> <Row2 BinOrder="3" Format="uint16" val0="40155" val1="34646" val2="30685" val3="27974" val4="25576" val5="23362" val6="23001" /> </TableData> </X4em_XPE2-RD> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1009. Series resistance = 0.000000 [ohm]. Full scale brightness = 2050. Emitter: XPEBGR-L1-R250-0E01, Lens: Carlco 10622, Mount: X4C, CIE1931: x=0.172200, y=0.686300 Photometric test setup: diffused, blade-in-box, constant 30 deg.C --> <X4em_XPE2-GR BinOrder="4"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1009" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="4" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="15697" val1="11178" val2="8635" val3="7086" val4="6019" val5="5307" val6="4749" /> <Row1 BinOrder="2" Format="uint16" val0="28749" val1="20753" val2="16236" val3="13430" val4="11634" val5="10432" val6="9469" /> <Row2 BinOrder="3" Format="uint16" val0="41582" val1="29087" val2="23021" val3="19399" val4="17276" val5="15717" val6="14777" /> <Row3 BinOrder="4" Format="uint16" val0="54399" val1="37088" val2="29591" val3="25640" val4="23573" val5="22652" val6="22000" /> </TableData> </X4em_XPE2-GR> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1012. Series resistance = 0.000000 [ohm]. Full scale brightness = 2850. Emitter: XPEBRY-L1-0000-00Q02, Lens: Carlco 10622, Mount: X4C, CIE1931: x=0.150700, y=0.048700 Photometric test setup: diffused, blade-in-box, constant 30 deg.C --> <X4em_XPE2-RY BinOrder="5"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1012" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="28911" val1="16174" val2="10842" val3="8044" val4="6484" val5="5398" val6="4636" /> <Row1 BinOrder="2" Format="uint16" val0="57965" val1="29624" val2="20110" val3="15115" val4="12201" val5="10277" val6="8949" /> <Row2 BinOrder="3" Format="uint16" val0="65535" val1="43643" val2="28318" val3="21559" val4="17523" val5="14983" val6="13187" /> </TableData> </X4em_XPE2-RY> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1014. Series resistance = 0.000000 [ohm]. Full scale brightness = 3800. Emitter: XPEBWT-L1-0000-00FE1, Lens: Carlco 10622, Mount: X4C, CIE1931: x=0.359700, y=0.370100 Photometric test setup: diffused, blade-in-box, constant 30 deg.C --> <X4em_XPE2-WT BinOrder="6"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1014" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="4" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="15940" val1="10371" val2="7866" val3="6437" val4="5535" val5="4884" val6="4421" /> <Row1 BinOrder="2" Format="uint16" val0="29392" val1="19681" val2="15294" val3="12684" val4="11053" val5="9898" val6="9065" /> <Row2 BinOrder="3" Format="uint16" val0="43582" val1="28692" val2="22548" val3="18927" val4="16798" val5="15316" val6="14357" /> <Row3 BinOrder="4" Format="uint16" val0="57793" val1="37348" val2="29732" val3="25617" val4="22967" val5="21473" val6="20759" /> </TableData> </X4em_XPE2-WT> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1021. Series resistance = 1.000000 [ohm]. Full scale brightness = 1300. Emitter: L1C1-DRD1000000000, Lens: Custom_X4L, Mount: X4L, CIE1931: x=0.708200, y=0.283400 Photometric test setup: diffused, blade-in-box, constant 30 deg.C --> <X4em_L1C1-DRD BinOrder="7"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1021" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="15647" val1="13591" val2="11986" val3="10616" val4="9623" val5="8784" val6="8096" /> <Row1 BinOrder="2" Format="uint16" val0="31558" val1="27389" val2="24176" val3="21652" val4="19704" val5="18040" val6="16740" /> </TableData> </X4em_L1C1-DRD> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1033. Series resistance = 0.150000 [ohm]. Full scale brightness = 2500. Emitter: L1C1-VLT1000000000, Lens: Custom_X4L, Mount: X4L, CIE1931: x=0.171700, y=0.028800 Photometric test setup: diffused, blade-in-box, constant 30 deg.C --> <X4em_L1C1-VLT BinOrder="8"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1033" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="19194" val1="10207" val2="6971" val3="6436" val4="5273" val5="4558" val6="3898" /> <Row1 BinOrder="2" Format="uint16" val0="36036" val1="19241" val2="13430" val3="12453" val4="10351" val5="8981" val6="7780" /> <Row2 BinOrder="3" Format="uint16" val0="53649" val1="27291" val2="19389" val3="18182" val4="15378" val5="13392" val6="11776" /> </TableData> </X4em_L1C1-VLT> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1034. Series resistance = 0.150000 [ohm]. Full scale brightness = 3200. Emitter: L1C1-4070000000000, Lens: Custom_X4L, Mount: X4L, CIE1931: x=0.424300, y=0.4098000 Photometric test setup: diffused, blade-in-box, constant 30 deg.C --> <X4em_L1C1-WHT BinOrder="9"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1034" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="4" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="16114" val1="10421" val2="8185" val3="6714" val4="5761" val5="5081" val6="4591" /> <Row1 BinOrder="2" Format="uint16" val0="30215" val1="19735" val2="15736" val3="13097" val4="11400" val5="10231" val6="9420" /> <Row2 BinOrder="3" Format="uint16" val0="44009" val1="28369" val2="23180" val3="19561" val4="17360" val5="15866" val6="15139" /> <Row3 BinOrder="4" Format="uint16" val0="57803" val1="36199" val2="30505" val3="26437" val4="24151" val5="22603" val6="22808" /> </TableData> </X4em_L1C1-WHT> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1041. Series resistance = 3 x 1.000000 [ohm]. Full scale brightness = 7500. Emitter: 3 x L1C1-DRD1000000000, Lens: Custom_X4L, Mount: X4L, CIE1931: x=0.708200, y=0.283400 Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <X4em_L1C1-DRD3 BinOrder="10"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1041" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="13271" val1="11647" val2="10312" val3="9292" val4="8532" val5="7715" val6="7177" /> <Row1 BinOrder="2" Format="uint16" val0="25911" val1="23021" val2="20740" val3="18863" val4="17535" val5="16064" val6="15141" /> <Row2 BinOrder="3" Format="uint16" val0="37626" val1="34094" val2="30567" val3="28063" val4="26724" val5="24334" val6="23133" /> </TableData> </X4em_L1C1-DRD3> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1053. Series resistance = 3 x 0.150000 [ohm]. Full scale brightness = 3500. Emitter: 3 x L1C1-VLT1000000000, Lens: Custom_X4L, Mount: X4L, CIE1931: x=0.171700, y=0.028800 Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <X4em_L1C1-VLT3 BinOrder="11"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1053" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="4" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="22009" val1="12500" val2="8931" val3="6900" val4="5771" val5="4903" val6="4335" /> <Row1 BinOrder="2" Format="uint16" val0="37724" val1="23099" val2="16473" val3="13137" val4="11026" val5="9521" val6="8467" /> <Row2 BinOrder="3" Format="uint16" val0="52732" val1="31261" val2="23522" val3="18902" val4="16082" val5="14078" val6="12583" /> <Row3 BinOrder="4" Format="uint16" val0="65535" val1="40163" val2="29433" val3="24161" val4="20730" val5="18459" val6="16576" /> </TableData> </X4em_L1C1-VLT3> <!-- [1100, 1199] ULTRASABERS EMITTERS--> <!-- ================================= --> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1100. Series resistance = -1.000000 [ohm]. Full scale brightness = 10500. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Red_3Cree BinOrder="12"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1100" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="1" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="38000" val1="32567" val2="28882" val3="25950" val4="23548" val5="21534" val6="19791" /> </TableData> </ultraEm_Red_3Cree> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1101. Series resistance = -1.000000 [ohm]. Full scale brightness = 1700. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Green_3Cree BinOrder="13"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1101" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="1" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="56500" val1="38800" val2="29721" val3="24237" val4="20661" val5="18016" val6="16049" /> </TableData> </ultraEm_Green_3Cree> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1102. Series resistance = -1.000000 [ohm]. Full scale brightness = 1000. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Blue_3Cree BinOrder="14"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1102" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="1" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="65535" val1="42200" val2="31146" val3="24778" val4="20511" val5="17527" val6="15316" /> </TableData> </ultraEm_Blue_3Cree> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1103. Series resistance = -1.000000 [ohm]. Full scale brightness = 1750. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Orange_3Cree BinOrder="15"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1103" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="20470" val1="17354" val2="14915" val3="13108" val4="11721" val5="10577" val6="9726" /> <Row1 BinOrder="2" Format="uint16" val0="41500" val1="34997" val2="30303" val3="26943" val4="24131" val5="21865" val6="20458" /> </TableData> </ultraEm_Orange_3Cree> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1104. Series resistance = -1.000000 [ohm]. Full scale brightness = 2100. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Silver_3Cree BinOrder="16"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1104" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="1" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="54900" val1="36300" val2="27149" val3="21941" val4="18383" val5="15891" val6="14040" /> </TableData> </ultraEm_Silver_3Cree> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1106. Series resistance = -1.000000 [ohm]. Full scale brightness = 2800. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Green_Cree BinOrder="17"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1106" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="27208" val1="15513" val2="10977" val3="8607" val4="7185" val5="6282" val6="5627" /> <Row1 BinOrder="2" Format="uint16" val0="51500" val1="29241" val2="20848" val3="16581" val4="14028" val5="12443" val6="11252" /> <Row2 BinOrder="3" Format="uint16" val0="65535" val1="43000" val2="29874" val3="24184" val4="20912" val5="18999" val6="17560" /> </TableData> </ultraEm_Green_Cree> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1007. Series resistance = -1.000000 [ohm]. Full scale brightness = 2300. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Blue_Cree BinOrder="18"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1007" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="41560" val1="22316" val2="15566" val3="11940" val4="9865" val5="8413" val6="7492" /> <Row1 BinOrder="2" Format="uint16" val0="65535" val1="40957" val2="28606" val3="22652" val4="19168" val5="16982" val6="16260" /> </TableData> </ultraEm_Blue_Cree> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1108. Series resistance = -1.000000 [ohm]. Full scale brightness = 1400. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Orange_Cree BinOrder="19"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1108" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="4" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="2285" val1="1911" val2="1634" val3="1470" val4="1268" val5="1155" val6="1125" /> <Row1 BinOrder="2" Format="uint16" val0="4910" val1="4161" val2="3567" val3="3312" val4="2847" val5="2639" val6="2674" /> <Row2 BinOrder="3" Format="uint16" val0="7886" val1="6789" val2="5802" val3="5636" val4="4733" val5="4519" val6="4945" /> <Row3 BinOrder="4" Format="uint16" val0="11442" val1="9976" val2="8326" val3="8986" val4="6858" val5="7044" val6="8500" /> </TableData> </ultraEm_Orange_Cree> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1109. Series resistance = -1.000000 [ohm]. Full scale brightness = 4500. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Silver_Cree BinOrder="20"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1109" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="25101" val1="14542" val2="10319" val3="8049" val4="6731" val5="5821" val6="5197" /> <Row1 BinOrder="2" Format="uint16" val0="49301" val1="27428" val2="19772" val3="15693" val4="13365" val5="11821" val6="10807" /> <Row2 BinOrder="3" Format="uint16" val0="65535" val1="40000" val2="28582" val3="23277" val4="20273" val5="18633" val6="17500" /> </TableData> </ultraEm_Silver_Cree> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1110. Series resistance = -1.000000 [ohm]. Full scale brightness = 1200. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_SRDest_rgb BinOrder="21"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1110" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="22507" val1="17808" val2="14870" val3="12756" val4="11268" val5="10166" val6="9104" /> <Row1 BinOrder="2" Format="uint16" val0="44000" val1="34846" val2="28858" val3="24995" val4="22150" val5="20135" val6="18268" /> </TableData> </ultraEm_SRDest_rgb> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1112. Series resistance = -1.000000 [ohm]. Full scale brightness = 2000. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_BlueVioAm_rgb BinOrder="22"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1112" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="22151" val1="17855" val2="14970" val3="12938" val4="11539" val5="10365" val6="9434" /> <Row1 BinOrder="2" Format="uint16" val0="44800" val1="35800" val2="30050" val3="26227" val4="23599" val5="21392" val6="19673" /> </TableData> </ultraEm_BlueVioAm_rgb> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1113. Series resistance = -1.000000 [ohm]. Full scale brightness = 2500. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_VioAm_rgb BinOrder="23"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1113" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="21990" val1="17706" val2="14949" val3="12968" val4="11648" val5="10495" val6="9651" /> <Row1 BinOrder="2" Format="uint16" val0="44500" val1="35869" val2="30346" val3="26635" val4="24266" val5="22132" val6="20713" /> </TableData> </ultraEm_VioAm_rgb> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1120. Series resistance = -1.000000 [ohm]. Full scale brightness = 7200. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_SYellow_LEng BinOrder="24"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1120" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="16005" val1="12281" val2="10130" val3="8764" val4="7879" val5="7289" val6="6716" /> <Row1 BinOrder="2" Format="uint16" val0="31766" val1="24555" val2="20521" val3="17976" val4="16371" val5="15621" val6="14688" /> <Row2 BinOrder="3" Format="uint16" val0="46974" val1="36419" val2="30756" val3="27391" val4="25468" val5="25457" val6="24329" /> </TableData> </ultraEm_SYellow_LEng> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1121. Series resistance = -1.000000 [ohm]. Full scale brightness = 8900. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_BHart_LEng BinOrder="25"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1121" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="4" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="6627" val1="5646" val2="4983" val3="4477" val4="4107" val5="3811" val6="3932" /> <Row1 BinOrder="2" Format="uint16" val0="13680" val1="11790" val2="10645" val3="9633" val4="8952" val5="8594" val6="9369" /> <Row2 BinOrder="3" Format="uint16" val0="21204" val1="18405" val2="17174" val3="15657" val4="14823" val5="14939" val6="19000" /> <Row3 BinOrder="4" Format="uint16" val0="29091" val1="25336" val2="24967" val3="22530" val4="21530" val5="23138" val6="34000" /> </TableData> </ultraEm_BHart_LEng> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1122. Series resistance = -1.000000 [ohm]. Full scale brightness = 3200. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_HPink_LEng BinOrder="26"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1122" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="7" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="3104" val1="2571" val2="2234" val3="1972" val4="1850" val5="1707" val6="1599" /> <Row1 BinOrder="2" Format="uint16" val0="6373" val1="5344" val2="4669" val3="4175" val4="3918" val5="3638" val6="3419" /> <Row2 BinOrder="3" Format="uint16" val0="9748" val1="8238" val2="7258" val3="6539" val4="6212" val5="5822" val6="5503" /> <Row3 BinOrder="4" Format="uint16" val0="13258" val1="11254" val2="10001" val3="9109" val4="8835" val5="8317" val6="7968" /> <Row4 BinOrder="5" Format="uint16" val0="16865" val1="14442" val2="12933" val3="11886" val4="11968" val5="11278" val6="11074" /> <Row5 BinOrder="6" Format="uint16" val0="20646" val1="17801" val2="16073" val3="15016" val4="15910" val5="15149" val6="15288" /> <Row6 BinOrder="7" Format="uint16" val0="24504" val1="21224" val2="19376" val3="18355" val4="21360" val5="20238" val6="20794" /> </TableData> </ultraEm_HPink_LEng> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1123. Series resistance = -1.000000 [ohm]. Full scale brightness = 6700. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_POrange_LEng BinOrder="27"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1123" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="8" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="3572" val1="2947" val2="2601" val3="2367" val4="2260" val5="2121" val6="1973" /> <Row1 BinOrder="2" Format="uint16" val0="7334" val1="6090" val2="5402" val3="4949" val4="4762" val5="4475" val6="4237" /> <Row2 BinOrder="3" Format="uint16" val0="11185" val1="9349" val2="8464" val3="7823" val4="7660" val5="7249" val6="7182" /> <Row3 BinOrder="4" Format="uint16" val0="15185" val1="12800" val2="11817" val3="11112" val4="11202" val5="10988" val6="11152" /> <Row4 BinOrder="5" Format="uint16" val0="19357" val1="16491" val2="15576" val3="14994" val4="15707" val5="16288" val6="16637" /> <Row5 BinOrder="6" Format="uint16" val0="23673" val1="20455" val2="19957" val3="19674" val4="21431" val5="22100" val6="22120" /> <Row6 BinOrder="7" Format="uint16" val0="28100" val1="24556" val2="25051" val3="25264" val4="27470" val5="27544" val6="27286" /> <Row7 BinOrder="8" Format="uint16" val0="32389" val1="28711" val2="30310" val3="30591" val4="32719" val5="32247" val6="31847" /> </TableData> </ultraEm_POrange_LEng> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1130. Series resistance = -1.000000 [ohm]. Full scale brightness = 8000. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Red_LEng2 BinOrder="28"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1130" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="8104" val1="6960" val2="6123" val3="5515" val4="5027" val5="4658" val6="4405" /> <Row1 BinOrder="2" Format="uint16" val0="16630" val1="14414" val2="12779" val3="11735" val4="10766" val5="10164" val6="9992" /> <Row2 BinOrder="3" Format="uint16" val0="25315" val1="22031" val2="19483" val3="18219" val4="16646" val5="16024" val6="16805" /> </TableData> </ultraEm_Red_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1131. Series resistance = -1.000000 [ohm]. Full scale brightness = 1600. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Green_LEng2 BinOrder="29"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1131" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="33237" val1="19824" val2="14460" val3="11599" val4="9907" val5="8726" val6="7844" /> <Row1 BinOrder="2" Format="uint16" val0="65535" val1="38000" val2="28087" val3="22772" val4="19747" val5="17533" val6="16052" /> </TableData> </ultraEm_Green_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1133. Series resistance = -1.000000 [ohm]. Full scale brightness = 7000. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Orange_LEng2 BinOrder="30"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1133" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="4" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="6421" val1="5207" val2="4477" val3="3977" val4="3624" val5="3350" val6="3109" /> <Row1 BinOrder="2" Format="uint16" val0="13446" val1="10941" val2="9571" val3="8589" val4="7956" val5="7502" val6="7095" /> <Row2 BinOrder="3" Format="uint16" val0="21233" val1="17291" val2="15310" val3="13976" val4="13299" val5="12930" val6="12590" /> <Row3 BinOrder="4" Format="uint16" val0="29796" val1="24030" val2="21495" val3="19892" val4="19363" val5="19297" val6="19000" /> </TableData> </ultraEm_Orange_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1134. Series resistance = -1.000000 [ohm]. Full scale brightness = 3500. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_Silver_LEng2 BinOrder="31"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1134" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="19940" val1="12978" val2="9404" val3="7421" val4="6257" val5="5417" val6="4836" /> <Row1 BinOrder="2" Format="uint16" val0="36282" val1="24783" val2="18144" val3="14451" val4="12368" val5="10838" val6="9816" /> <Row2 BinOrder="3" Format="uint16" val0="52000" val1="36186" val2="26468" val3="21379" val4="18297" val5="16455" val6="15232" /> </TableData> </ultraEm_Silver_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1135. Series resistance = -1.000000 [ohm]. Full scale brightness = 3600. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_VioAm_LEng2 BinOrder="32"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1135" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="1" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="47000" val1="35990" val2="29405" val3="25394" val4="22855" val5="20819" val6="18884" /> </TableData> </ultraEm_VioAm_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1136. Series resistance = -1.000000 [ohm]. Full scale brightness = 1500. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_SRDest_LEng2 BinOrder="33"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1136" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="35500" val1="20453" val2="14706" val3="11813" val4="10106" val5="8821" val6="7934" /> <Row1 BinOrder="2" Format="uint16" val0="60000" val1="40000" val2="27821" val3="22796" val4="19455" val5="17051" val6="15398" /> </TableData> </ultraEm_SRDest_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1137. Series resistance = -1.000000 [ohm]. Full scale brightness = 3500. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_ABlue_LEng2 BinOrder="34"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1137" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="32000" val1="19745" val2="14739" val3="11996" val4="10259" val5="9068" val6="8207" /> <Row1 BinOrder="2" Format="uint16" val0="50000" val1="38000" val2="28278" val3="23207" val4="20184" val5="18267" val6="16778" /> </TableData> </ultraEm_ABlue_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1138. Series resistance = -1.000000 [ohm]. Full scale brightness = 6200. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_SYellow_LEng2 BinOrder="35"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1138" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="23539" val1="18580" val2="15483" val3="13518" val4="12067" val5="11132" val6="10378" /> <Row1 BinOrder="2" Format="uint16" val0="47500" val1="36500" val2="30680" val3="27313" val4="24916" val5="23413" val6="22522" /> </TableData> </ultraEm_SYellow_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1139. Series resistance = -1.000000 [ohm]. Full scale brightness = 11500. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_BHart_LEng2 BinOrder="36"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1139" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="7" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="4370" val1="3725" val2="3230" val3="2903" val4="2700" val5="2424" val6="2364" /> <Row1 BinOrder="2" Format="uint16" val0="8933" val1="7664" val2="6670" val3="6038" val4="5671" val5="5147" val6="5064" /> <Row2 BinOrder="3" Format="uint16" val0="13549" val1="11779" val2="10237" val3="9378" val4="8952" val5="8139" val6="8240" /> <Row3 BinOrder="4" Format="uint16" val0="18277" val1="16017" val2="14057" val3="12908" val4="12620" val5="11497" val6="12288" /> <Row4 BinOrder="5" Format="uint16" val0="23073" val1="20497" val2="17991" val3="16834" val4="16997" val5="15336" val6="18361" /> <Row5 BinOrder="6" Format="uint16" val0="27927" val1="25273" val2="21992" val3="20841" val4="22545" val5="19553" val6="32735" /> <Row6 BinOrder="7" Format="uint16" val0="32604" val1="28908" val2="25902" val3="24973" val4="29416" val5="23455" val6="50000" /> </TableData> </ultraEm_BHart_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1140. Series resistance = -1.000000 [ohm]. Full scale brightness = 3000. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_BlueVioAm_LEng2 BinOrder="37"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1140" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="1" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="49500" val1="36400" val2="28950" val3="24359" val4="21349" val5="19046" val6="17320" /> </TableData> </ultraEm_BlueVioAm_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1141. Series resistance = -1.000000 [ohm]. Full scale brightness = 8500. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_HPink_LEng2 BinOrder="38"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1141" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="2" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="20444" val1="17281" val2="15135" val3="13569" val4="12445" val5="11503" val6="10721" /> <Row1 BinOrder="2" Format="uint16" val0="41000" val1="35243" val2="31087" val3="28658" val4="27073" val5="25254" val6="23620" /> </TableData> </ultraEm_HPink_LEng2> <!-- Auto-generated XML table for pPWL LED Driver. COD version: 02. (C) RSX Engineering, 2022 LED ID = 1142. Series resistance = -1.000000 [ohm]. Full scale brightness = 6000. Photometric test setup: direct exposure, bell-on-pommel, constant 30 deg.C --> <ultraEm_POrange_LEng2 BinOrder="39"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <TableID BinOrder="2" Format="uint16" value="1142" /> <TableHandler BinOrder="3" Format="uint16" value="101" /> <TableSize BinOrder="4" Format="uint16" sizeH="7" sizeV="3" /> <TableDataType BinOrder="5" Format="string" len="7" value="uint16"/> <TableData BinOrder="6" Format="uint16"> <Row0 BinOrder="1" Format="uint16" val0="7557" val1="6379" val2="5412" val3="4951" val4="4556" val5="4238" val6="4040" /> <Row1 BinOrder="2" Format="uint16" val0="15973" val1="13711" val2="12161" val3="10959" val4="10361" val5="9992" val6="10049" /> <Row2 BinOrder="3" Format="uint16" val0="25080" val1="22073" val2="19741" val3="17874" val4="17660" val5="18291" val6="21588" /> </TableData> </ultraEm_POrange_LEng2> <!--====================================== | LEGACY LED DRIVERS [2000 - 2099] | ======================================--> <!-- 2002: Legacy Cree-XPE2 Red --> <LegacyXPE2_Red BinOrder="40"> <!-- update BinOrder!!! --> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="2002" /> <!-- LED ID --> <StructHandler BinOrder="3" Format="uint16" value="100" /> <!-- xAnalogLED_Driver_Legacy --> <StructSize BinOrder="4" Format="uint16" value="23"/> <!-- number of BYTES in subsequent fields --> <MaxAmps BinOrder="5" Format="float" value="1"/> <MaxVolts BinOrder="6" Format="float" value="2.65"/> <P2Amps BinOrder="7" Format="float" value="0.35"/> <P2Volts BinOrder="8" Format="float" value="2.2"/> <R BinOrder="9" Format="float" value="0.68"/> <Red BinOrder="10" Format="uint8" value="255"/> <Green BinOrder="11" Format="uint8" value="0"/> <Blue BinOrder="12" Format="uint8" value="0"/> </LegacyXPE2_Red> <!-- 2009: Legacy Cree-XPE2 Green --> <LegacyXPE2_Green BinOrder="41" Format="uint16"> <!-- update BinOrder!!! --> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="2009" /> <!-- LED ID --> <StructHandler BinOrder="3" Format="uint16" value="100" /> <!-- xAnalogLED_Driver_Legacy --> <StructSize BinOrder="4" Format="uint16" value="23"/> <!-- number of BYTES in subsequent fields --> <MaxAmps BinOrder="5" Format="float" value="1"/> <MaxVolts BinOrder="6" Format="float" value="3.7"/> <P2Amps BinOrder="7" Format="float" value="0.35"/> <P2Volts BinOrder="8" Format="float" value="3.2"/> <R BinOrder="9" Format="float" value="0"/> <Red BinOrder="10" Format="uint8" value="0"/> <Green BinOrder="11" Format="uint8" value="255"/> <Blue BinOrder="12" Format="uint8" value="0"/> </LegacyXPE2_Green> <!-- 2011: Legacy Cree-XPE2 Blue --> <LegacyXPE2_Blue BinOrder="42" Format="uint16"> <!-- update BinOrder!!! --> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="2011" /> <!-- LED ID --> <StructHandler BinOrder="3" Format="uint16" value="100" /> <!-- xAnalogLED_Driver_Legacy --> <StructSize BinOrder="4" Format="uint16" value="23"/> <!-- number of BYTES in subsequent fields --> <MaxAmps BinOrder="5" Format="float" value="1"/> <MaxVolts BinOrder="6" Format="float" value="3.4"/> <P2Amps BinOrder="7" Format="float" value="0.35"/> <P2Volts BinOrder="8" Format="float" value="3.1"/> <R BinOrder="9" Format="float" value="0"/> <Red BinOrder="10" Format="uint8" value="0"/> <Green BinOrder="11" Format="uint8" value="0"/> <Blue BinOrder="12" Format="uint8" value="255"/> </LegacyXPE2_Blue> <!-- 2014: Legacy Cree-XPE2 White --> <LegacyXPE2_White BinOrder="43" Format="uint16"> <!-- update BinOrder!!! --> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="2014" /> <!-- LED ID --> <StructHandler BinOrder="3" Format="uint16" value="100" /> <!-- xAnalogLED_Driver_Legacy --> <StructSize BinOrder="4" Format="uint16" value="23"/> <!-- number of BYTES in subsequent fields --> <MaxAmps BinOrder="5" Format="float" value="1"/> <MaxVolts BinOrder="6" Format="float" value="3.4"/> <P2Amps BinOrder="7" Format="float" value="0.35"/> <P2Volts BinOrder="8" Format="float" value="3.1"/> <R BinOrder="9" Format="float" value="0.24"/> <Red BinOrder="10" Format="uint8" value="0"/> <Green BinOrder="11" Format="uint8" value="0"/> <Blue BinOrder="12" Format="uint8" value="0"/> </LegacyXPE2_White> <!--===================================== | COLOR RENDERERS [2100, 2999] | =====================================--> <!-- GENERIC RENDERERS [2100, 2199] --> <!-- ============================== --> <!-- 2100: Generic Lightness renderer with unity gain --> <genHSLRenderer_L BinOrder="44"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="2100" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="110" /> <!-- _xColorRenderer_HSLe --> <StructSize BinOrder="4" Format="uint16" value="10"/> <!-- 10 BYTES in subsequent fields --> <type BinOrder="5" Format="char" value="l"/> <gain BinOrder="6" Format="float" value="1"/> <targetR BinOrder="7" Format="uint8" value="0"/> <targetG BinOrder="8" Format="uint8" value="0"/> <targetB BinOrder="9" Format="uint8" value="0"/> <tfID BinOrder="10" Format="uint16" value="0"/> </genHSLRenderer_L> <!-- 2101: Generic Saturation renderer with unity gain --> <genHSLRenderer_S BinOrder="45"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="2101" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="110" /> <!-- _xColorRenderer_HSLe --> <StructSize BinOrder="4" Format="uint16" value="10"/> <!-- 10 BYTES in subsequent fields --> <type BinOrder="5" Format="char" value="s"/> <gain BinOrder="6" Format="float" value="1"/> <targetR BinOrder="7" Format="uint8" value="0"/> <targetG BinOrder="8" Format="uint8" value="0"/> <targetB BinOrder="9" Format="uint8" value="0"/> <tfID BinOrder="10" Format="uint16" value="0"/> </genHSLRenderer_S> <!-- 2102: Generic hue renderer with unity gain, target = white --> <genHSLRenderer_WHT BinOrder="46"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="2102" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="110" /> <!-- _xColorRenderer_HSLe --> <StructSize BinOrder="4" Format="uint16" value="10"/> <!-- 10 BYTES in subsequent fields --> <type BinOrder="5" Format="char" value="h"/> <gain BinOrder="6" Format="float" value="1"/> <targetR BinOrder="7" Format="uint8" value="255"/> <targetG BinOrder="8" Format="uint8" value="255"/> <targetB BinOrder="9" Format="uint8" value="255"/> <tfID BinOrder="10" Format="uint16" value="0"/> </genHSLRenderer_WHT> <!-- 2103: Saturation renderer with transfer function --> <tfHSLRenderer_S BinOrder="47"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="2103" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="110" /> <!-- _xColorRenderer_HSLe --> <StructSize BinOrder="4" Format="uint16" value="10"/> <!-- 10 BYTES in subsequent fields --> <type BinOrder="5" Format="char" value="s"/> <gain BinOrder="6" Format="float" value="1"/> <targetR BinOrder="7" Format="uint8" value="0"/> <targetG BinOrder="8" Format="uint8" value="0"/> <targetB BinOrder="9" Format="uint8" value="0"/> <tfID BinOrder="10" Format="uint16" value="2500"/> </tfHSLRenderer_S> <!-- 2500: Transfer function for saturation renderer (2103) --> <TF_SatRenderer BinOrder="48"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="t"/> <!-- table --> <TableID BinOrder="2" Format="uint16" value="2500" /> <!-- ID --> <TableHandler BinOrder="3" Format="uint16" value="99" /> <!-- xInterpolator --> <TableSize BinOrder="4" Format="uint16" sizeH="3" sizeV="2" /> <!-- sizeH = number of reference points --> <TableDataType BinOrder="5" Format="string" len="7" value="uint8"/> <TableData BinOrder="6" Format="uint8"> <!-- Transfer function should start at (0,0) and end at (255,255) --> <Row0 BinOrder="1" Format="uint8" val0="0" val1="128" val2="255" /> <!-- X values --> <Row1 BinOrder="2" Format="uint8" val0="0" val1="128" val2="255" /> <!-- Y values --> </TableData> </TF_SatRenderer> <!--======================================= | ANALOG LED CHANNELS [3000 - 3999] | =======================================--> <!-- X4 CHANNELS [3000, 3099] --> <!-- ======================== --> <!-- 3000: X4 Cree Red-Green-RoyalBlue, direct --> <X4ch_XPE2_RGrB BinOrder="49"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3000" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="3"/> <!-- 3 emitters --> <renderer BinOrder="6" Format="uint16" value="0"/> <!-- direct renderer --> <drivers BinOrder="7" Format="uint16" val01="1002" val02="1009" val03="1012" /> <!-- XPE2-RD, -GR & -RY pPWL drivers --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </X4ch_XPE2_RGrB> <!-- 3001: X4 Cree Red-Green-Blue, direct --> <X4ch_XPE2_RGB BinOrder="50"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3001" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="3"/> <!-- 3 emitters --> <renderer BinOrder="6" Format="uint16" value="0"/> <!-- direct renderer --> <drivers BinOrder="7" Format="uint16" val01="1002" val02="1009" val03="1011" /> <!-- XPE2-RD, -GR & -BL pPWL drivers --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </X4ch_XPE2_RGB> <!-- 3041: X4 Lumileds tri-DeepRed, lightness --> <X4ch_L1C1_DRD3 BinOrder="51"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3041" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1041" val02="0" val03="0" /> <!-- L1C1-DRD3 pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </X4ch_L1C1_DRD3> <!-- 3053: X4 Lumileds tri-Violet, lightness --> <X4ch_L1C1_VLT3 BinOrder="52"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3053" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1053" val02="0" val03="0" /> <!-- L1C1-VLT3 pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </X4ch_L1C1_VLT3> <!-- 3080: X4 Cree White, saturation --> <X4ch_XPE2_Wsat BinOrder="53"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3080" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2101"/> <!-- HSL enhancer - generic S --> <drivers BinOrder="7" Format="uint16" val01="1014" val02="0" val03="0" /> <!-- XPE2-WT pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </X4ch_XPE2_Wsat> <!-- 3081: X4 Lumileds White, saturation --> <X4ch_L1C1_Wsat BinOrder="54"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3081" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2101"/> <!-- HSL enhancer - generic S --> <drivers BinOrder="7" Format="uint16" val01="1034" val02="0" val03="0" /> <!-- L1C1-WHT pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </X4ch_L1C1_Wsat> <!-- 3082: X4 Cree, White, saturation + TF --> <X4ch_L1C1_WsatTF BinOrder="55"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3082" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2103"/> <!-- HSL enhancer - S+TF --> <drivers BinOrder="7" Format="uint16" val01="1014" val02="0" val03="0" /> <!-- XPE2-WT pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </X4ch_L1C1_WsatTF> <!-- ULTRASABERS CHANNELS [3100, 3199] --> <!-- ================================= --> <!-- 3100: monochrome, lightness --> <ultraCh_Red_3Cree BinOrder="56"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3100" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1100" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Red_3Cree> <!-- 3101: monochrome, lightness --> <ultraCh_Green_3Cree BinOrder="57"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3101" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1101" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Green_3Cree> <!-- 3102: monochrome, lightness --> <ultraCh_Blue_3Cree BinOrder="58"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3102" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1102" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Blue_3Cree> <!-- 3103: monochrome, lightness --> <ultraCh_Orange_3Cree BinOrder="59"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3103" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1103" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Orange_3Cree> <!-- 3104: monochrome, lightness --> <ultraCh_Silver_3Cree BinOrder="60"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3104" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1104" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Silver_3Cree> <!-- 3105: monochrome, lightness --> <ultraCh_Red_Cree BinOrder="61"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3105" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1105" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Red_Cree> <!-- 3106: monochrome, lightness --> <ultraCh_Green_Cree BinOrder="62"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3106" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1106" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Green_Cree> <!-- 3107: monochrome, lightness --> <ultraCh_Blue_Cree BinOrder="63"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3107" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1107" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Blue_Cree> <!-- 3108: monochrome, lightness --> <ultraCh_Orange_Cree BinOrder="64"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3108" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1108" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Orange_Cree> <!-- 3109: monochrome, lightness --> <ultraCh_Silver_Cree BinOrder="65"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3109" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1109" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Silver_Cree> <!-- 3110: monochrome, lightness --> <ultraCh_SRDest_rgb BinOrder="66"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3110" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1110" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_SRDest_rgb> <!-- 3111: monochrome, lightness --> <ultraCh_ABlue_rgb BinOrder="67"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3111" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1111" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_ABlue_rgb> <!-- 3112: monochrome, lightness --> <ultraCh_BlueVioAm_rgb BinOrder="68"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3112" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1112" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_BlueVioAm_rgb> <!-- 3113: monochrome, lightness --> <ultraCh_VioAm_rgb BinOrder="69"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3113" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1113" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_VioAm_rgb> <!-- 3120: monochrome, lightness --> <ultraCh_SYellow_LEng BinOrder="70"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3120" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1120" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_SYellow_LEng> <!-- 3121: monochrome, lightness --> <ultraCh_BHeart_Leng BinOrder="71"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3121" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1121" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_BHeart_Leng> <!-- 3122: monochrome, lightness --> <ultraCh_HPink_Leng BinOrder="72"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3122" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1122" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_HPink_Leng> <!-- 3123: monochrome, lightness --> <ultraCh_POrange_Leng BinOrder="73"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3123" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1123" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_POrange_Leng> <!-- 3130: monochrome, lightness --> <ultraCh_Red_LEng2 BinOrder="74"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3130" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1130" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Red_LEng2> <!-- 3131: monochrome, lightness --> <ultraCh_Green_LEng2 BinOrder="75"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3131" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1131" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Green_LEng2> <!-- 3132: monochrome, lightness --> <ultraCh_Blue_LEng2 BinOrder="76"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3132" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1132" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Blue_LEng2> <!-- 3133: monochrome, lightness --> <ultraCh_Orange_LEng2 BinOrder="77"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3133" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1133" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Orange_LEng2> <!-- 3134: monochrome, lightness --> <ultraCh_Silver_LEng2 BinOrder="78"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3134" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1134" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Silver_LEng2> <!-- 3135: monochrome, lightness --> <ultraCh_VioAm_LEng2 BinOrder="79"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3135" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1135" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_VioAm_LEng2> <!-- 3136: monochrome, lightness --> <ultraCh_SRDest_LEng2 BinOrder="80"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3136" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1136" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_SRDest_LEng2> <!-- 3137: monochrome, lightness --> <ultraCh_ABlue_LEng2 BinOrder="81"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3137" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1137" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_ABlue_LEng2> <!-- 3138: monochrome, lightness --> <ultraCh_SYellow_LEng2 BinOrder="82"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3138" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1138" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_SYellow_LEng2> <!-- 3139: monochrome, lightness --> <ultraCh_BHeart_LEng2 BinOrder="83"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3139" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1139" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_BHeart_LEng2> <!-- 3140: monochrome, lightness --> <ultraCh_BlueVioAm_LEng2 BinOrder="84"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3140" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1140" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_BlueVioAm_LEng2> <!-- 3141: monochrome, lightness --> <ultraCh_HPink_LEng2 BinOrder="85"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3141" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1141" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_HPink_LEng2> <!-- 3142: monochrome, lightness --> <ultraCh_POrange_LEng2 BinOrder="86"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3142" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="1142" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_POrange_LEng2> <!-- 3180: white, saturation --> <ultraCh_Silver_LEng2sat BinOrder="87"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3180" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2101"/> <!-- HSL enhancer - generic S --> <drivers BinOrder="7" Format="uint16" val01="1124" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_Silver_LEng2sat> <!-- 3181: arctic blue, saturation --> <ultraCh_ABlue_LEng2sat BinOrder="88"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3181" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2101"/> <!-- HSL enhancer - generic S --> <drivers BinOrder="7" Format="uint16" val01="1127" val02="0" val03="0" /> <!-- pPWL driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </ultraCh_ABlue_LEng2sat> <!-- GENERIC AND LEGACY CHANNELS [3990, 3999] --> <!-- ========================================== --> <!-- 3990: Generic lightness channel, single-emitter, resistor-limited --> <genCh_ResLim_L BinOrder="89"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3990" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2100"/> <!-- HSL enhancer - generic L --> <drivers BinOrder="7" Format="uint16" val01="0" val02="0" val03="0" /> <!-- direct driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </genCh_ResLim_L> <!-- 3991: Generic saturation channel, single-emitter, resistor-limited --> <genCh_ResLim_S BinOrder="90"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3991" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2101"/> <!-- HSL enhancer - generic S --> <drivers BinOrder="7" Format="uint16" val01="0" val02="0" val03="0" /> <!-- direct driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </genCh_ResLim_S> <!-- 3992: Generic RGB channel, resistor-limited --> <genCh_ResLim_RGB BinOrder="91"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3992" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="3"/> <!-- 3 emitters --> <renderer BinOrder="6" Format="uint16" value="0"/> <!-- direct renderer --> <drivers BinOrder="7" Format="uint16" val01="0" val02="0" val03="0" /> <!-- direct drivers --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </genCh_ResLim_RGB> <!-- 3993: RGB channel, legacy Cree --> <legCh_RGB_Cree BinOrder="92"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3993" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="3"/> <!-- 3 emitters --> <renderer BinOrder="6" Format="uint16" value="0"/> <!-- direct renderer --> <drivers BinOrder="7" Format="uint16" val01="2002" val02="2009" val03="2011" /> <!-- legacy Cree R, G, B drivers --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </legCh_RGB_Cree> <!-- 3994: White channel, legacy Cree --> <legCh_RGB_Cree BinOrder="93"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <StructID BinOrder="2" Format="uint16" value="3994" /> <StructHandler BinOrder="3" Format="uint16" value="112" /> <!-- xAnalogLED_Channel --> <StructSize BinOrder="4" Format="uint16" value="15"/> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1 emitter --> <renderer BinOrder="6" Format="uint16" value="2102"/> <!-- HSL enhancer - H, White --> <drivers BinOrder="7" Format="uint16" val01="2014" val02="0" val03="0" /> <!-- legacy Cree W driver --> <gammaTFs BinOrder="8" Format="uint16" val01="0" val02="0" val03="0" /> </legCh_RGB_Cree> <!--============================== | ANALOG LEDS [4000, 4999] | ==============================--> <!-- X4 LED MODULES [4000, 4099] --> <!-- ============================ --> <!-- 4000: 4 emitters, RD, GR, RO + WT on saturation --> <X4-FullSpectrum BinOrder="94"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4000" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="4"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3000" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-FullSpectrum> <!-- 4001: 4 emitters, RD, GR, RO + WT on saturation with TF --> <X4-FullSpectrum_TFsat BinOrder="95"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4001" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="4"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3000" val02="3082" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-FullSpectrum_TFsat> <!-- 4041: 2 emitters, 3 x DRD on lightness + WHT on saturation --> <X4-DeepRed BinOrder="96"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4041" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3041" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-DeepRed> <!-- 4042: 2 emitters, 3 x RED on lightness + WHT on saturation --> <X4-Red BinOrder="97"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4042" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3041" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-Red> <!-- 4043: 2 emitters, 3 x RNG on lightness + WHT on saturation --> <X4-RedOrange BinOrder="98"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4043" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-RedOrange> <!-- 4045: 2 emitters, 3 x AMB on lightness + WHT on saturation --> <X4-Amber BinOrder="99"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4045" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-Amber> <!-- 4046: 2 emitters, 3 x PCA on lightness + WHT on saturation --> <X4-PCAmber BinOrder="100"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4046" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-PCAmber> <!-- 4047: 2 emitters, 3 x MNT on lightness + WHT on saturation --> <X4-Mint BinOrder="101"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4047" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-Mint> <!-- 4048: 2 emitters, 3 x LME on lightness + WHT on saturation --> <X4-Lime BinOrder="102"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4048" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-Lime> <!-- 4049: 2 emitters, 3 x GRN on lightness + WHT on saturation --> <X4-Green BinOrder="103"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4049" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-Green> <!-- 4050: 2 emitters, 3 x CYN on lightness + WHT on saturation --> <X4-Cyan BinOrder="104"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4050" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-Cyan> <!-- 4051: 2 emitters, 3 x BLU on lightness + WHT on saturation --> <X4-Blue BinOrder="105"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4051" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-Blue> <!-- 4052: 2 emitters, 3 x RYL on lightness + WHT on saturation --> <X4-RoyalBlue BinOrder="106"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4052" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-RoyalBlue> <!-- 4053: 2 emitters, 3 x VLT on lightness + WHT on saturation --> <X4-Violet BinOrder="107"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4053" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3053" val02="3080" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-Violet> <!-- 4054: 2 emitters, 3 x WHT on lightness + VLT on saturation --> <X4-Silver BinOrder="108"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4054" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3053" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </X4-Silver> <!-- ULTRASABERS LED MODULES [4100, 4199] --> <!-- ==================================== --> <!-- 4100: 1 emitter on lightness --> <ultra-Red_3Cree BinOrder="109"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4100" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3100" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Red_3Cree> <!-- 4101: 1 emitter on lightness --> <ultra-Green_3Cree BinOrder="110"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4101" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3101" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Green_3Cree> <!-- 4102: 1 emitter on lightness --> <ultra-Blue_3Cree BinOrder="111"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4102" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3102" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Blue_3Cree> <!-- 4103: 1 emitter on lightness --> <ultra-Orange_3Cree BinOrder="112"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4103" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3103" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Orange_3Cree> <!-- 4104: 1 emitter on lightness --> <ultra-Silver_3Cree BinOrder="113"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4104" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3104" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Silver_3Cree> <!-- 4105: 1 emitter on lightness --> <ultra-Red BinOrder="114"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4105" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3105" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Red> <!-- 4106: 1 emitter on lightness --> <ultra-Green BinOrder="115"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4106" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3106" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Green> <!-- 4107: 1 emitter on lightness --> <ultra-Blue BinOrder="116"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4107" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3107" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Blue> <!-- 4108: 1 emitter on lightness --> <ultra-Orange BinOrder="117"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4108" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3108" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Orange> <!-- 4109: 1 emitter on lightness --> <ultra-Silver BinOrder="118"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4109" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3109" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Silver> <!-- 4110: 1 emitter on lightness --> <ultra-SunriseDestiny BinOrder="119"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4110" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3110" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-SunriseDestiny> <!-- 4111: 1 emitter on lightness --> <ultra-ArcticBlue BinOrder="120"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4111" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3111" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-ArcticBlue> <!-- 4112: 1 emitter on lightness --> <ultra-BlueVioletAmethyst BinOrder="121"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4112" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3112" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-BlueVioletAmethyst> <!-- 4113: 1 emitter on lightness --> <ultra-VioletAmethyst BinOrder="122"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4113" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3113" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-VioletAmethyst> <!-- 4120: 1 emitter on lightness --> <ultra-SentinelYellow BinOrder="123"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4120" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3120" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-SentinelYellow> <!-- 4121: 1 emitter on lightness --> <ultra-BaneHeart BinOrder="124"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4121" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3121" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-BaneHeart> <!-- 4122: 1 emitter on lightness --> <ultra-HotPink BinOrder="125"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4122" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3122" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-HotPink> <!-- 4123: 1 emitter on lightness --> <ultra-PyrestoneOrange BinOrder="126"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4123" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3123" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-PyrestoneOrange> <!-- 4130: 1 emitter on lightness + white on saturation --> <ultra-Red-White BinOrder="127"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4130" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3130" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Red-White> <!-- 4131: 1 emitter on lightness + white on saturation --> <ultra-Green-White BinOrder="128"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4131" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3131" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Green-White> <!-- 4132: 1 emitter on lightness + white on saturation --> <ultra-Blue-White BinOrder="129"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4132" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3132" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Blue-White> <!-- 4133: 1 emitter on lightness + white on saturation --> <ultra-Orange-White BinOrder="130"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4133" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3133" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Orange-White> <!-- 4134: 1 emitter on lightness + white on saturation --> <ultra-Silver-ArcticBlue BinOrder="131"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4134" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3134" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-Silver-ArcticBlue> <!-- 4135: 1 emitter on lightness + white on saturation --> <ultra-VioletAmethyst-White BinOrder="132"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4135" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3135" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-VioletAmethyst-White> <!-- 4136: 1 emitter on lightness + white on saturation --> <ultra-SunriseDestiny-White BinOrder="133"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4136" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3136" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-SunriseDestiny-White> <!-- 4137: 1 emitter on lightness + white on saturation --> <ultra-ArcticBlue-White BinOrder="134"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4137" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3137" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-ArcticBlue-White> <!-- 4138: 1 emitter on lightness + white on saturation --> <ultra-SentinelYellow-White BinOrder="135"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4138" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3138" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-SentinelYellow-White> <!-- 4139: 1 emitter on lightness + white on saturation --> <ultra-BaneHeart-White BinOrder="136"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4139" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3139" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-BaneHeart-White> <!-- 4140: 1 emitter on lightness + white on saturation --> <ultra-BlueVioletAmethyst-White BinOrder="137"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4140" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3140" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-BlueVioletAmethyst-White> <!-- 4141: 1 emitter on lightness + white on saturation --> <ultra-HotPink-White BinOrder="138"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4141" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3141" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-HotPink-White> <!-- 4142: 1 emitter on lightness + white on saturation --> <ultra-PyrestoneOrange-White BinOrder="139"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4142" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3142" val02="3180" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ultra-PyrestoneOrange-White> <!-- GENERIC, RESISTOR-LIMITED LEDs [4990, 4999] --> <!-- =========================================== --> <!-- 4990: 1 emitter, direct driver on lightness --> <ResLimited_monochrome BinOrder="140"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4990" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="1"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ResLimited_monochrome> <!-- 4991: 2 emitters, direct drivers on lightness + saturation --> <ResLimited_monochrome_flash BinOrder="141"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4991" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="2"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3990" val02="3991" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ResLimited_monochrome_flash> <!-- 4992: 3 emitters, direct drivers on RGB --> <ResLimited_RGB BinOrder="142"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4992" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="3"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3992" val02="0" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ResLimited_RGB> <!-- 4993: 4 emitters, direct drivers on RGB + saturation --> <ResLimited_RGB_flash BinOrder="143"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="4993" /> <!-- ID --> <StructHandler BinOrder="3" Format="uint16" value="113" /> <!-- xAnalogLED --> <StructSize BinOrder="4" Format="uint16" value="9"/> <!-- 9 BYTES in subsequent fields --> <nEm BinOrder="5" Format="uint8" value="4"/> <!-- 1...4 emitters, across all channels --> <channelIDs BinOrder="6" Format="uint16" val01="3992" val02="3991" val03="0" val04="0"/> <!-- specify 4 channels, 0 for unused --> </ResLimited_RGB_flash> <!--================================ | PIXEL DRIVERS [5000, 5099] | ================================--> <!-- 5000: WS281x @ 800 Hz, 127 pixels --> <ultraPixel BinOrder="144"> <!--! set BinOrder !--> <EntryType BinOrder="1" Format="char" value="s"/> <!-- struct --> <StructID BinOrder="2" Format="uint16" value="5000" /> <StructHandler BinOrder="3" Format="uint16" value="120" /> <!-- HANDLER_PixelDriver --> <StructSize BinOrder="4" Format="uint16" value="14"/> <!-- 14 BYTES in subsequent fields --> <driverType BinOrder="5" Format="char" value="t"/> <!-- WS281x on timer --> <nPixels BinOrder="6" Format="uint16" value="131"/> <!-- 127 on blade + 4 on coupler --> <byteOrder BinOrder="7" Format="uint8" value="2"/> <!-- RGB=0, RBG=1, GRB=2 (default), GBR=3 --> <frequency BinOrder="8" Format="uint16" value="740"/> <!-- Data frequency [kHz]. Default = 800 --> <reset BinOrder="9" Format="uint16" value="300"/> <!-- Frame time [us]. Default = 300 --> <t0h BinOrder="10" Format="uint16" value="294"/> <!-- 0-code high time [ns]. Default = 294 --> <t1h BinOrder="11" Format="uint16" value="892"/> <!-- 1-code high time [ns]. Default = 892 --> <pwrOffDelay BinOrder="12" Format="uint16" value="3000"/> <!-- Power-off delay [ms]. Default = 3000. --> </ultraPixel> <!--============== | TEMPORARY | ==============--> </ProffieLite_LED_Library>
LEDLIB Output
(HEX, view-only, actual binary available on clicking download)
Profile XML
(can be edited)
Profile Output
(HEX, view-only, actual binary available on clicking download)
Presets XML
(can be edited)
Presets Output
(HEX, view-only, actual binary available on clicking download)
